Mild Steel Channel Black S355

Buying Options


Mild Steel Angle Black S235/S275 is an angle shaped S235/S275 Black Mild Steel.

S235/S275 is an unalloyed low carbon mild steel grade supplied as hot rolled.

As a low carbon steel specification, S235/S275 provides low strength with good machinability and is suitable for welding

Additional Information

Mild Steel Angle Black S355 is a channel shaped S355 Black Mild Steel.

S355 structural steel is a high-strength low-alloy European standard structural steel covering four of the six “Parts” within the EN 10025 – 2004 standard.

With minimum yield of 50,000 KSI, it meets requirements in chemistry and physical properties similar to ASTM A572. Careful attention should always be placed on the specific variation of S355 required if considering substitute material.

Bending / Forming: Fair
Corrosion Resistance: Poor
Machining / Grinding: Good
Wear Resistance: Fair
Welding: Excellent
Common uses of Mild Steel Channel Black S355 include:
Bridge components
Components for Offshore Structures
Power Plants
Mining and Earth-Moving Equipment
Load-Handling Equipment
Structural Steel Works
Wind Tower Components
More Info
Brinell Hardness: 146 – 187 HB
Melting Point: 1426 C
Tensile: 470 – 630 N/mm2
Yield: 355 N/mm2 Min.


Weight N/A
Tube Size

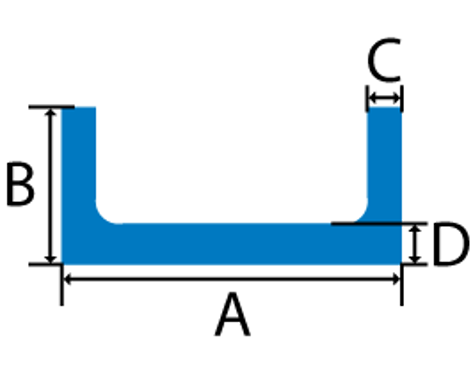

100MM X 50MM X 10.2KG (100MM (H) X 50MM (W) X 8.5MM (FT) X 5MM (WT), 125MM X 65MM X 14.8KG (125MM (H) X 65MM (W) X 9.5MM (FT) X 5.5MM (WT), 150MM X 75MM X 17.9KG (150MM (H) X 75MM (W) X 10MM (FT) X 5.5MM (WT), 150MM X 90MM X 23.9KG (150MM (H) X 90MM (W) X 12MM (FT) X 6.5MM (WT), 200MM X 75MM X 23.4KG (200MM (H) X 75MM (W) X 12.5MM (FT) X 6MM (WT), 200MM X 90MM X 29.7KG (200MM (H) X 90MM (W) X 14MM (FT) X 7MM (WT)

Tube Length
